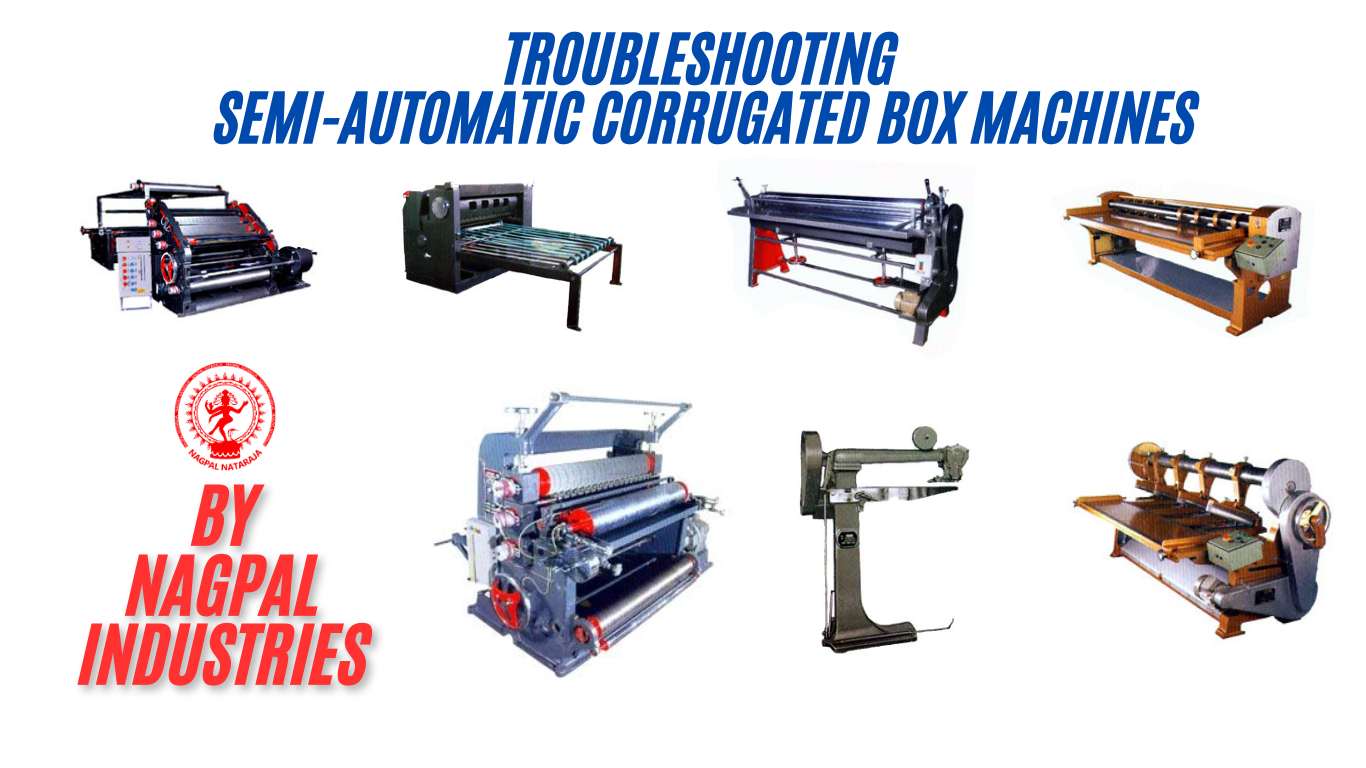

Troubleshooting Semi-Automatic Corrugated Box Machines

Keeping Production Running Smoothly: Troubleshooting Common Issues in Your Semi-Automatic Corrugated Box Making Machines

For businesses relying on semi-automatic corrugated box making machines to meet their packaging needs, ensuring smooth and consistent operation is paramount. These machines offer a vital balance of efficiency and affordability, but like any mechanical equipment, they can occasionally encounter issues. Identifying and resolving these problems quickly is crucial to minimize downtime, maintain production targets, and ensure the consistent quality of your corrugated boxes.

At Nagpal Industries, we not only manufacture reliable semi-automatic corrugated box machines but also believe in empowering our users with the knowledge to keep their operations running efficiently. This blog post addresses some of the most common problems encountered with these machines, providing practical troubleshooting tips to help you get back up and running swiftly.

Common Issues and Their Troubleshooting Tips:

Problem 1: Inconsistent or Uneven Creasing/Scoring

Possible Causes:

Worn or Damaged Creasing/Scoring Wheels: Over time, these components can wear down or become damaged, leading to inconsistent creases.
Incorrect Pressure Settings: If the pressure applied by the creasing/scoring wheels is too high or too low, it can result in weak or broken creases.
Misalignment of Creasing/Scoring Tools: If the top and bottom creasing/scoring tools are not perfectly aligned, the crease will be uneven.
Variations in Board Thickness: Inconsistent thickness of the corrugated board can affect the creasing quality.

Troubleshooting Steps:

Inspect the Wheels: Check for any signs of wear, damage, or debris buildup. Clean or replace worn-out wheels.
Adjust Pressure: Carefully adjust the pressure settings according to the board thickness and desired crease depth. Start with a moderate setting and fine-tune as needed.
Check Alignment: Ensure the top and bottom creasing/scoring tools are properly aligned according to the machine’s manual.
Verify Board Quality: Ensure the corrugated board being used meets the specified thickness and quality standards.

Problem 2: Difficulty in Feeding or Jamming of Corrugated Sheets

Possible Causes:

Misaligned Feed Rollers: If the feed rollers are not properly aligned or have uneven pressure, they may not grip and feed the sheets correctly.
Worn or Slippery Feed Rollers: Over time, the surface of the feed rollers can become worn or lose grip.
Incorrect Gap Between Feed Rollers: The gap between the feed rollers should be adjusted according to the thickness of the corrugated board.
Obstructions in the Feed Path: Dust, debris, or miscut board can obstruct the smooth flow of sheets.
Static Electricity: In dry conditions, static electricity can cause sheets to stick together, leading to feeding issues.

Troubleshooting Steps:

Check Roller Alignment and Pressure: Ensure the feed rollers are correctly aligned and apply even pressure across the sheet. Adjust as per the machine manual.
Clean or Replace Rollers: Clean the feed rollers to remove any dust or debris. If they are worn or slippery, consider replacing them.
Adjust Roller Gap: Adjust the gap between the feed rollers to match the thickness of the corrugated board.
Clear Obstructions: Regularly inspect and clear the feed path of any obstructions.
Address Static: Use anti-static sprays or grounding techniques to minimize static electricity buildup.

Problem 3: Inaccurate or Jagged Slitting/Cutting

Possible Causes:

Dull or Damaged Slitting/Cutting Blades: Sharp blades are essential for clean cuts. Dull or damaged blades will result in inaccurate or jagged edges.
Incorrect Blade Overlap or Pressure: Improper overlap or insufficient pressure between the blades can lead to incomplete or rough cuts.
Blade Misalignment: If the top and bottom slitting/cutting blades are not correctly aligned, the cut will be inaccurate.
Movement or Vibration of the Machine: Excessive vibration can affect the precision of the cutting process.

Troubleshooting Steps:

Sharpen or Replace Blades: Regularly sharpen or replace dull or damaged slitting/cutting blades.
Adjust Blade Overlap and Pressure: Carefully adjust the blade overlap and pressure according to the machine manual and the thickness of the board.
Check Blade Alignment: Ensure the top and bottom blades are precisely aligned.
Secure the Machine: Ensure the machine is placed on a stable and level surface to minimize vibration.

Problem 4: Issues with Gluing or Pasting (if applicable)

Possible Causes:

Incorrect Glue Application: Insufficient or uneven glue application can result in weak or incomplete bonding.
Using the Wrong Type of Adhesive: The adhesive used must be compatible with the corrugated board and the machine’s gluing system.
Clogged Glue Nozzles or Applicators: Dried glue or debris can clog the nozzles or applicators, leading to inconsistent glue flow.
Incorrect Pressure During Bonding: Insufficient pressure during the bonding process can result in a weak joint.

Troubleshooting Steps:

Adjust Glue Flow and Application: Ensure the glue is being applied evenly and in the correct quantity.
Verify Adhesive Compatibility: Use the recommended type of adhesive for your machine and corrugated board.
Clean Glue System: Regularly clean the glue nozzles, applicators, and tanks to prevent clogging.
Check Bonding Pressure: Ensure adequate pressure is being applied during the bonding process.

Problem 5: Machine Not Starting or Intermittent Power Issues

Possible Causes:

Power Supply Problems: Check the main power source, cables, and connections for any issues.
Tripped Circuit Breaker or Blown Fuse: Overloads can cause the circuit breaker to trip or a fuse to blow.
Emergency Stop Button Engaged: Ensure the emergency stop button is not pressed.
Loose Wiring Connections: Internal wiring connections may have become loose.

Troubleshooting Steps:

Check Power Source: Verify that the machine is properly connected to a functioning power outlet.
Reset Breaker or Replace Fuse: Identify the cause of the overload and reset the circuit breaker or replace the blown fuse.
Disengage Emergency Stop: Ensure the emergency stop button is released.
Inspect Wiring: Carefully check for any loose or damaged wiring connections (consult a qualified technician if needed).

Preventive Maintenance: The Key to Minimizing Downtime

While troubleshooting is essential, the best way to avoid common issues is through regular preventive maintenance. This includes:

Daily Cleaning: Remove dust, debris, and adhesive buildup.
Regular Lubrication: Lubricate moving parts as per the machine’s manual.
Periodic Inspections: Regularly check for wear and tear on critical components.
Following the Manufacturer’s Guidelines: Adhere to the recommended maintenance schedule outlined in your machine’s manual.

Why Choose Nagpal Industries for Your Semi-Automatic Corrugated Box Machine Needs?

Nagpal Industries is committed to providing not only high-quality semi-automatic corrugated box making machines but also comprehensive support to our customers. Our machines are built for durability and ease of maintenance. We also offer:

Detailed Operation and Maintenance Manuals: Providing clear guidance on machine operation and upkeep.
Readily Available Spare Parts: Ensuring quick replacement of worn components.
Expert Technical Support: Our experienced technicians are available to assist with any complex issues.

Conclusion: Keeping Your Semi-Automatic Machines Running Efficiently

By understanding the common issues that can arise with semi-automatic corrugated box making machines and implementing effective troubleshooting and preventive maintenance practices, businesses can significantly minimize downtime and ensure consistent production of high-quality corrugated boxes. At Nagpal Industries, we are your partners in packaging, providing reliable machinery and the knowledge to keep your operations running smoothly. Refer to your machine’s manual for specific troubleshooting steps and contact our support team if you encounter issues that you cannot resolve independently.
